The GT12X puts DALI-2 control at your fingertips, powered with SYMPHOLIGHT.
Interfaces & Controls
Design & Customization
Connectivity & Certification
Installation & Power
About GT12X

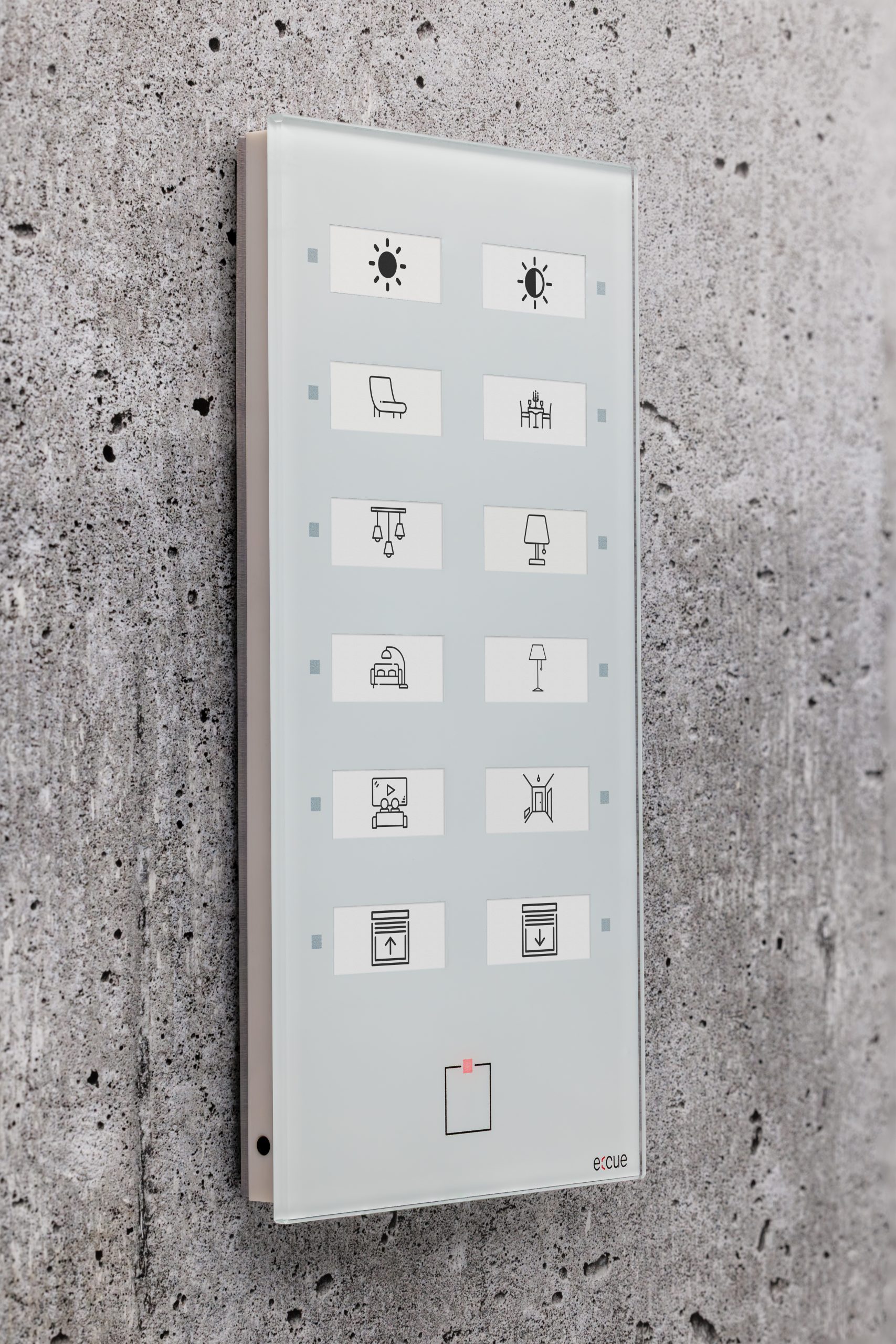

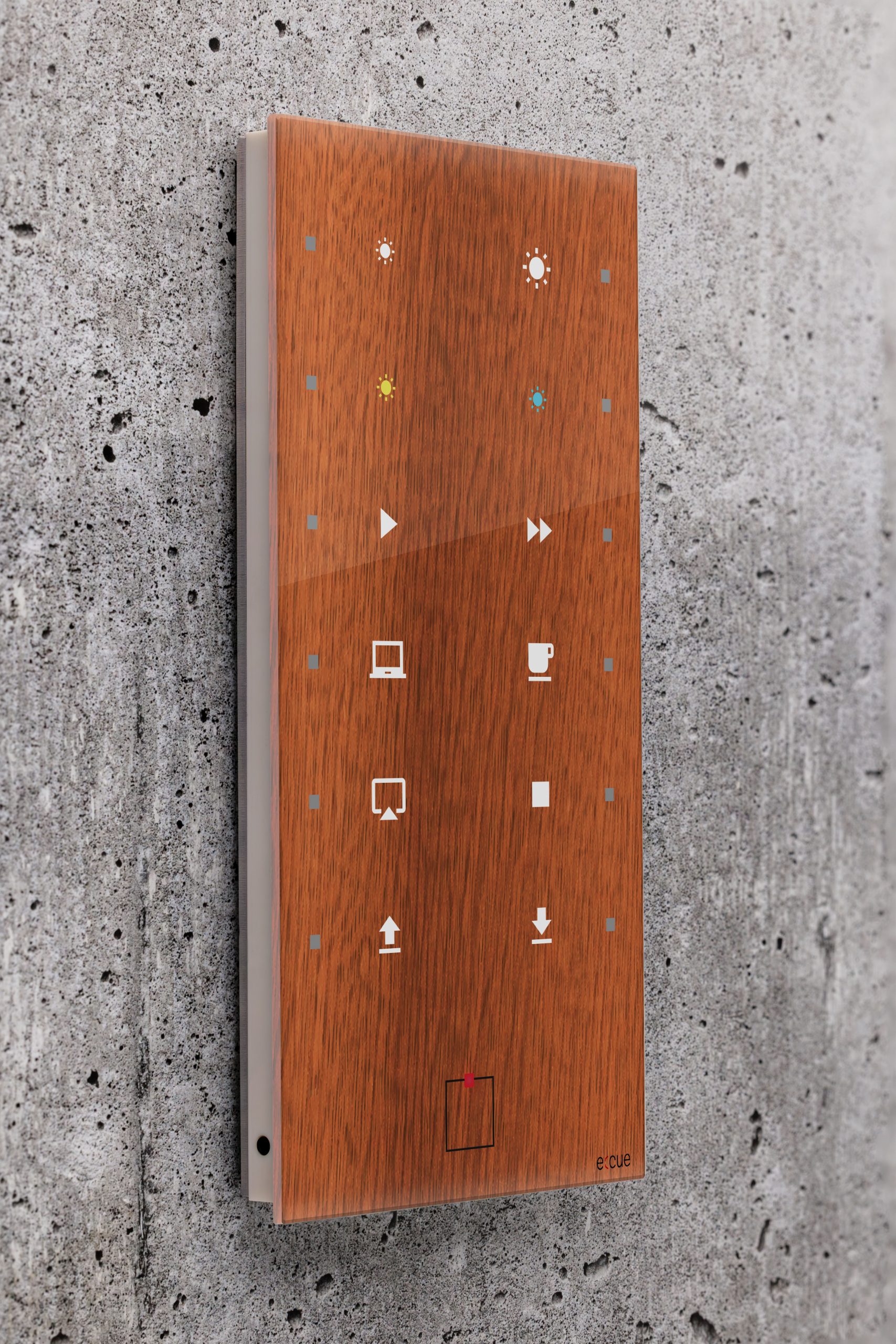

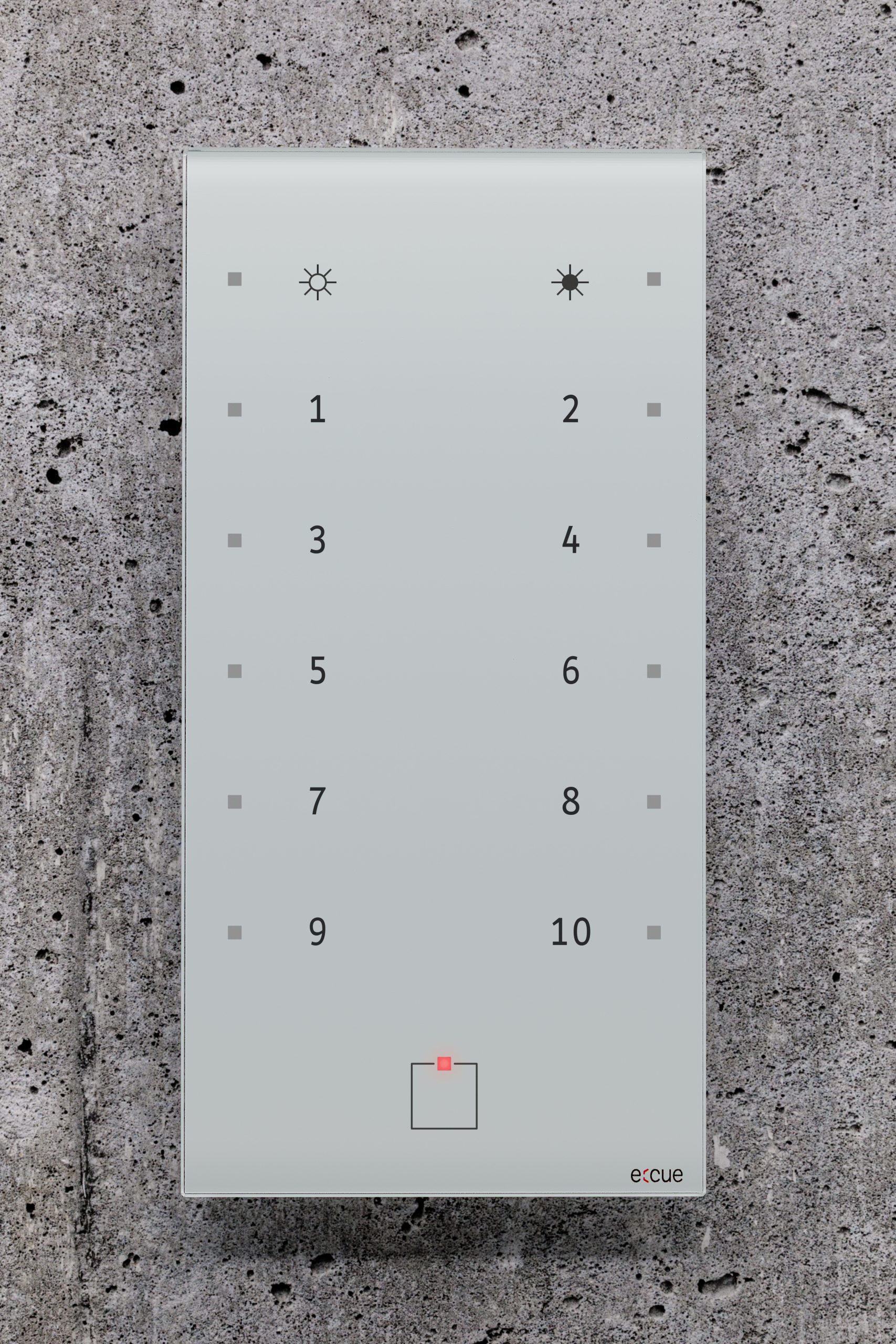

The Glass Touch GT12X combines a refined glass surface with responsive, touch‑sensitive keys to deliver a sleek, modern control experience. Its customizable design options—ranging from clean white or black finishes to fully personalized prints—allow seamless integration into any architectural or interior environment. With clear visual feedback, flexible installation, and support for high‑end lighting applications across hospitality, residential, commercial, and marine projects, the GT12X elevates both functionality and aesthetics in a single, premium interface.
ICs:
Certifications & Approbations
| Dimensions (W x H x D) | 80 x 160 x 12 mm / 3.15 x 6.3 x 0.49 in |
| Weight | 200 g / 7.05 oz (incl. mounting plate) |

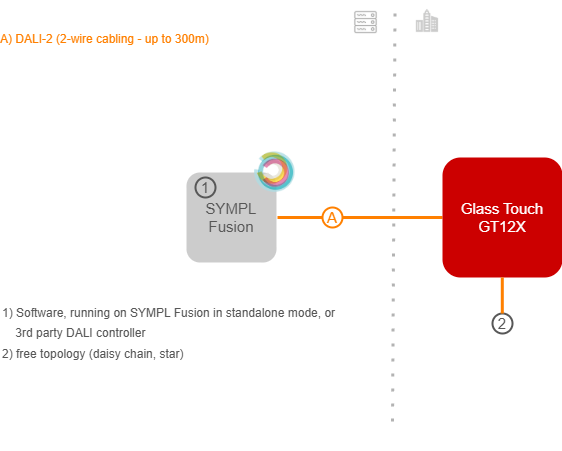

| Power Supply | via DALI-2 bus |
| Power Consumption | 0.15 W max. |
| Operating Temperature | 0 … 45 °C / 32 … 113 °F |
| Storage Temperature | -20 … 75 °C / -4 … 167 °F |
| Op. / Stor. Humidity | 0 … 80% RH, non-condensing |
| Ingress Protection | IP40 |
| Housing | Glass (surface) Aluminum (mounting plate) ABS (housing body) UV and scratch resistant coating |
| Mounting | Standard single-gang junction box |
| Certification | ETL, CE, FCC, DALI-2 |
| User Interfaces | 13 capacitive touch buttons with red LED feedback Rotary DIP switch for enabling acoustic feedback |
Specification Sheets
CAD Files
The tool to realise simple to highly sophisticated architectural lighting control projects – one software fits all!
e:cue Fusion delivers flexible, scalable lighting control for any environment.
A single DALI line interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.

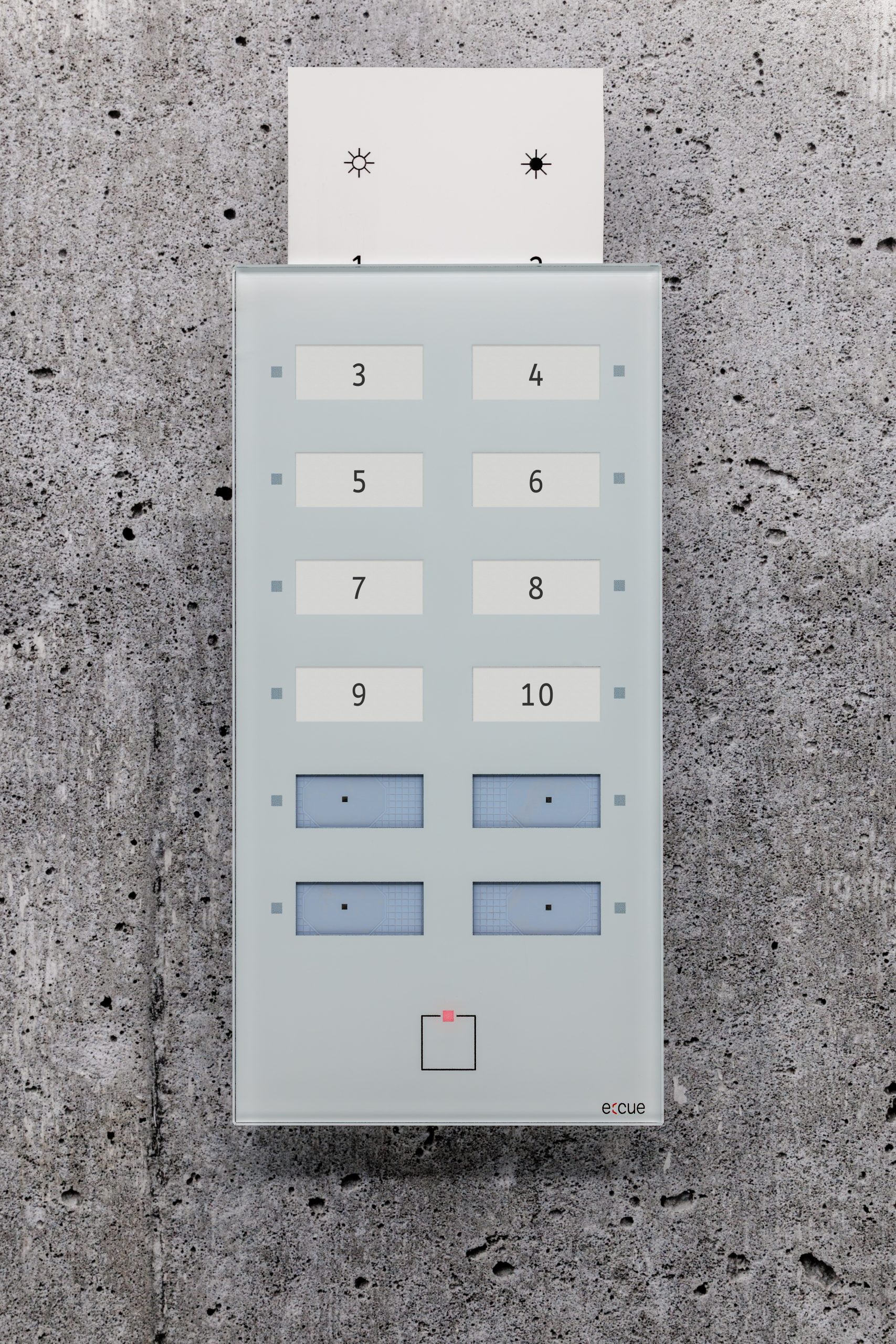

Easily design your personalized plastic sheet insert or complete glass print.
