Glass Touch User Terminal

Wall-mounted interfaces

The Glass Touch series of user terminals features an elegant design with a glass surface as well as touch-sensitive keys and wheel for user interaction.

Designed to work with the SYMPL e:bus Node or Butler XT2 via the e:bus protocol, the Glass Touch keys and wheel are easily customized using the e:cue software to perform any function according to project requirements.

Pleasing to the eye, these devices are the perfect solution for control in high-end lighting applications such as retail, architectural, hospitality, and residential projects. Glass Touches are wall mountable, compatible with standard flush type boxes, and up to eight units can be connected to a single Butler XT2, for added flexibility during installation.


Key features

  • Sleek enclosed and thus easy-to-clean glass surface with modern design
  • Touch-sensitive keys and wheel
  • One cable for power and data (e:bus)
  • Wall mountable, compatible with standard flush type boxes
  • Easy set-up and individual programming options
  • Connects via free topology e:cue e:bus (2-wire power and data connection)

Technical Specification

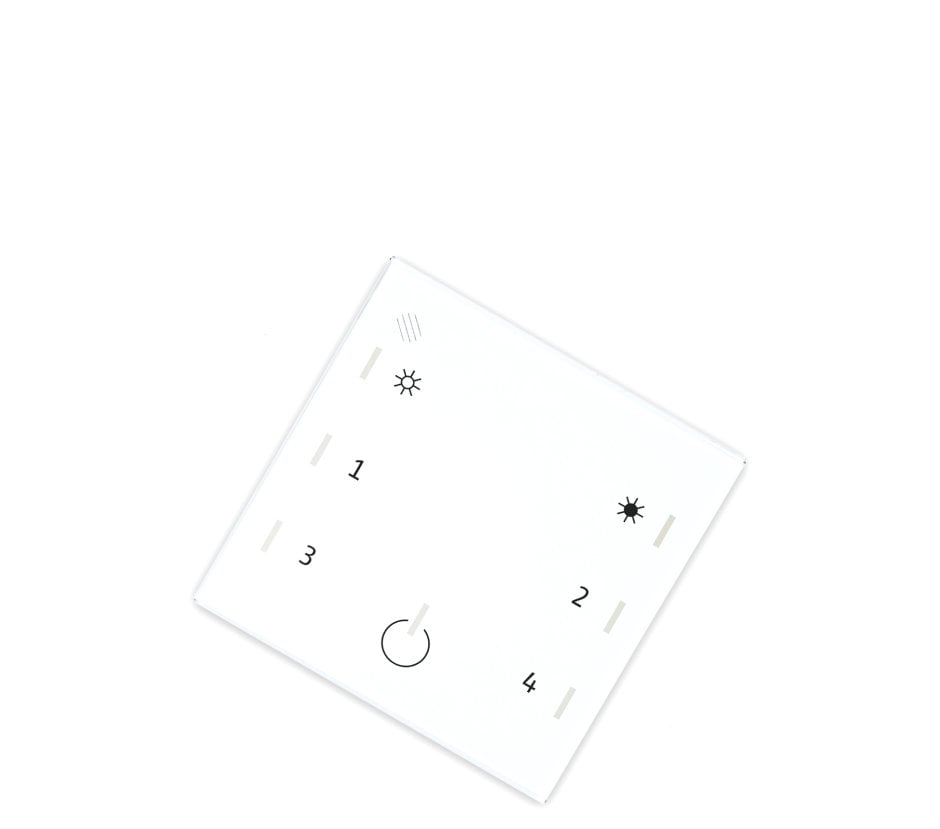

Glass Touch T6Glass Touch T12
Article CodeIC: AA439100138
EAN: 4006584745951
IC: AA439070138
EAN: 4006584745937
Layout2 x Dimm Button 4 x Digit Button (Scenes etc.) 1 x On/Off Button2 x Dimm Button 10 x Digit Button (Scenes etc.) 1 x On/Off Button
Dimensions WxHxD (mm/inches)80 x 80 x 11 / 3.15 x 3.15 x 0.4380 x 160 x 11 / 3.15 x 6.3 x 0.43
Weight kg/lb0.11 kg / 0.23 lbs0.21 kg / 0.46lbs
Power Supply24 V DC, 18 mA (via e:bus)24 V DC, 18 mA (via e:bus)
Operating / Storage Temp. °C/°F0 … 40 °C / 32 … 104 °F0 … 40 °C / 32 … 104 °F
Operating / Storage Hum.0 … 80%, not condensing0 … 80%, not condensing
HousingGlass (surface), aluminium (housing)Glass (surface), aluminium (housing)
MountingIn-wall mountingIn-wall mounting
CertificationsCE, ETL, UKCACE, ETL, UKCA
User InterfaceCapacitive touch sensorsCapacitive touch sensors
System Linke:bus (screw terminals)e:bus (screw terminals)
