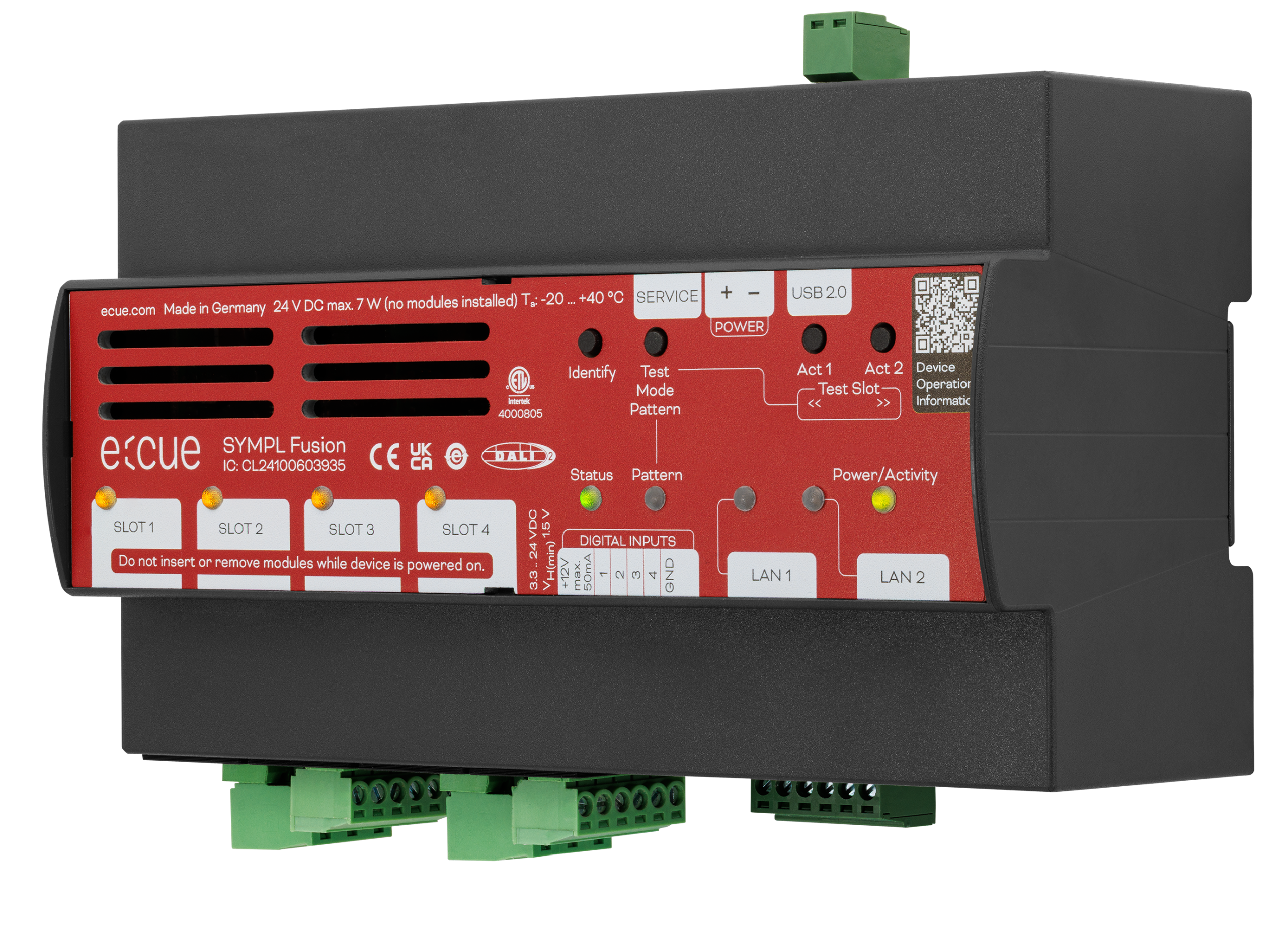

e:cue Fusion delivers flexible, scalable lighting control for any environment.

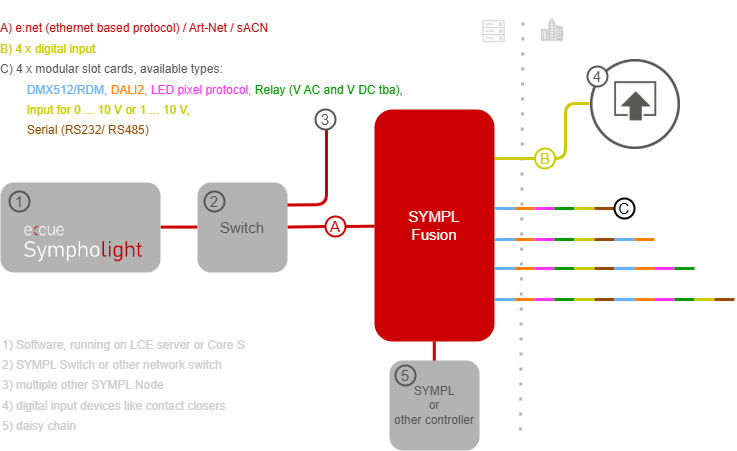

Whatever setup your project requires, the Fusion always has the right configuration at hand. The modular card slot concept allows the freedom to compose your individual demands. The Fusion can be used as a simple standalone controller, expandable in a network with other e:cue devices, or as a decentralized control unit linked to multiple others.
The SYMPL Fusion is the right choice for all lighting control requirements, functional lighting, dynamic lighting control or if needed the combination of both!
ICs:
Certifications & Approbations
| Dimensions (W x H x D) | 160 x 90 x 60 mm / 6.3 x 3.54 x 2.36 in (without fastening clip) | ||||||||
| Weight | 250 g / 0.55 lb | ||||||||
| Power Supply Input | 24 V DC on terminal plug, wire gauge: 0.2 … 1.3 mm² | ||||||||
| Power Consumption |
Max. 30 W @ 4 x DALI-2 modules @ full load 7 W @ no modules |
||||||||
| Operating Temperature | -20 … 40 °C / -4 … 104 °F | ||||||||
| Storage Temperature | -20 … 70 °C / -4 … 158 °F | ||||||||
| Operating/Storage Hum. | 0 … 80% non-condensing | ||||||||
| Cooling | Fanless, convection | ||||||||
| Protection Class | IP20 | ||||||||
| Electrical Safety | SELV | ||||||||
| Housing Material | Self extinguishing blend PC/ABS | ||||||||
| Mounting | on 35 mm DIN rails (EN 60715) | ||||||||
| Certification | CE, UKCA, ETL (Conforms to ANSI/UL Std. 62368-1; Certified to CSA Std. C22.2 NO. 62368-1) | ||||||||
| Output Interfaces |

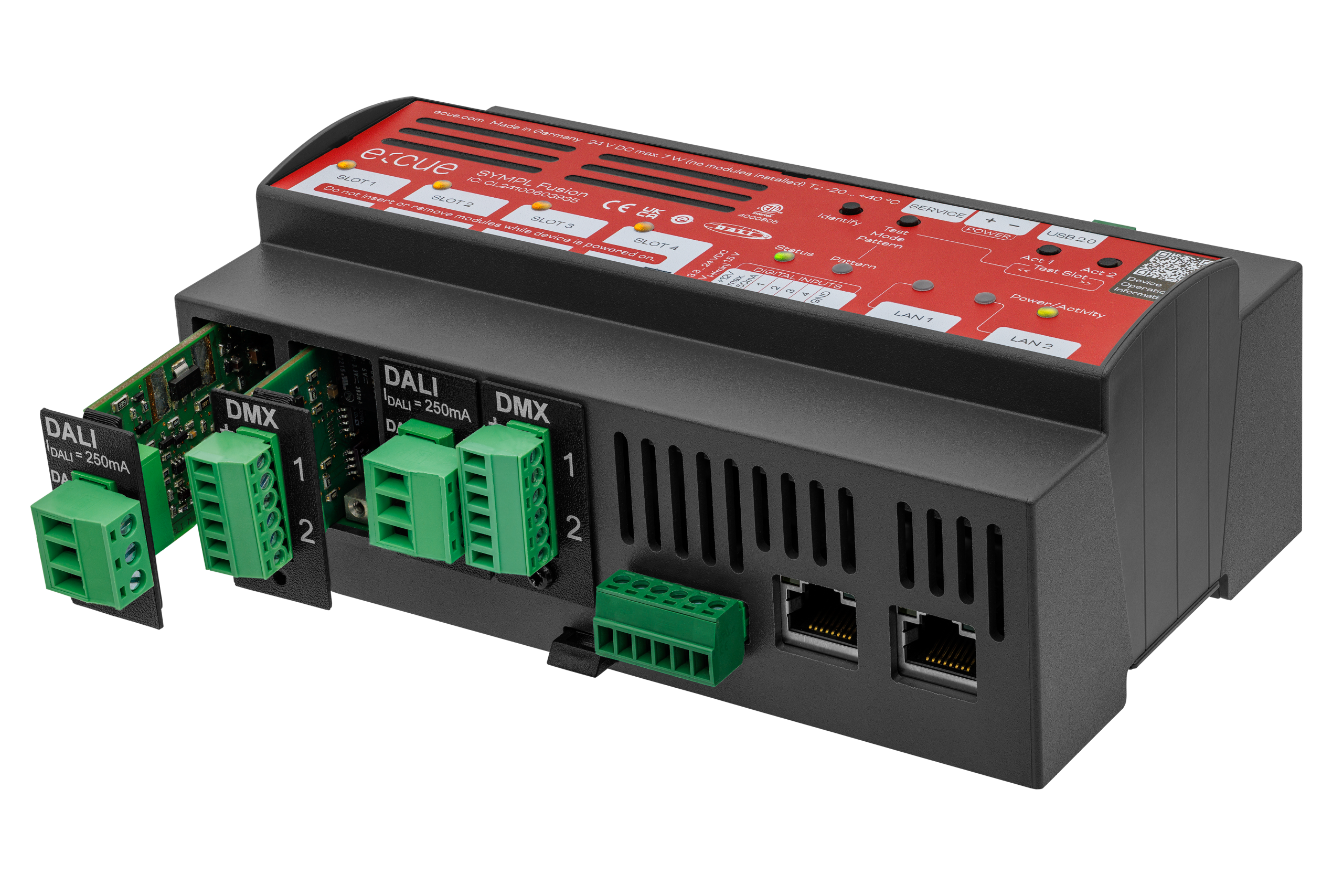

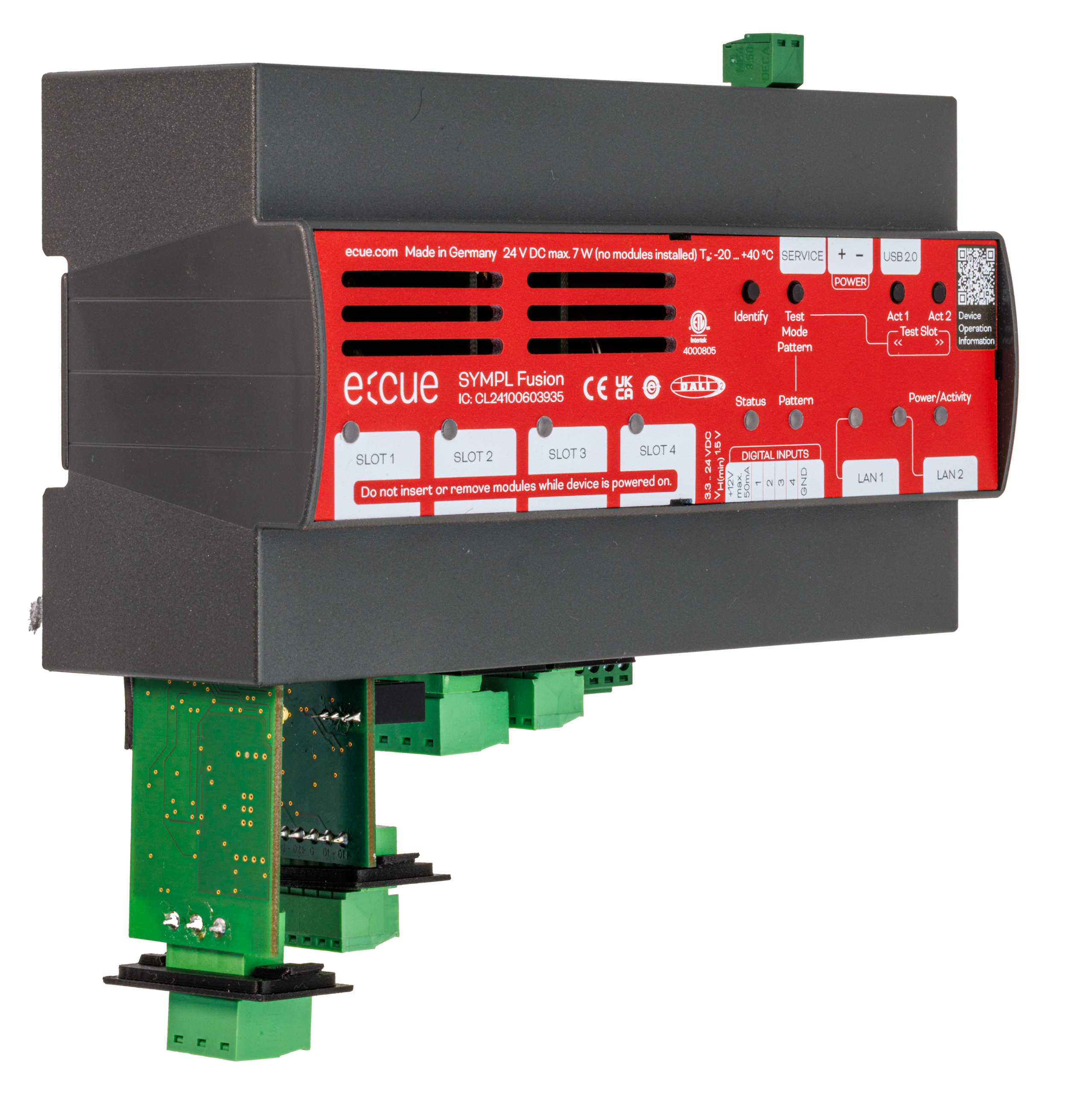

4 x Modular card slots, types: Available Soon: |
||||||||
| Input Interfaces |
4 x Digital input
12 V source: max. output current |
||||||||
| System Interface | 2 x e:net / Ethernet, 10/100/1000 Mbit/s, RJ45, CAT shielded 2 x USB 2.0 Type A 1 x Service port (micro-USB) |
||||||||
| User Interfaces | LEDs for Ethernet activity, device status, test pattern, power; 2 x Freely assignable versatile buttons DMX & DALI test mode accessible with device button 1 x LED per card slot |

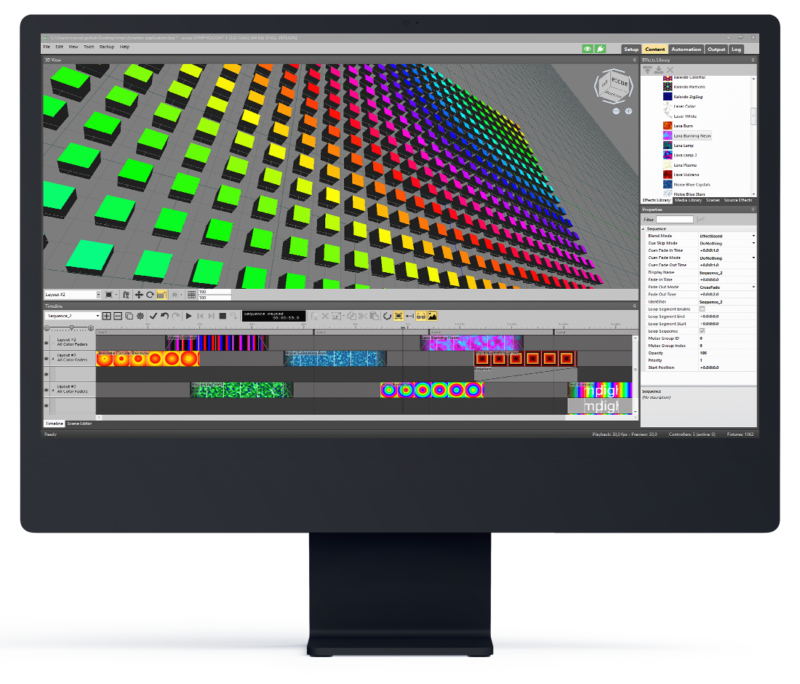

The tool to realise simple to highly sophisticated architectural lighting control projects – one software fits all!
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks.

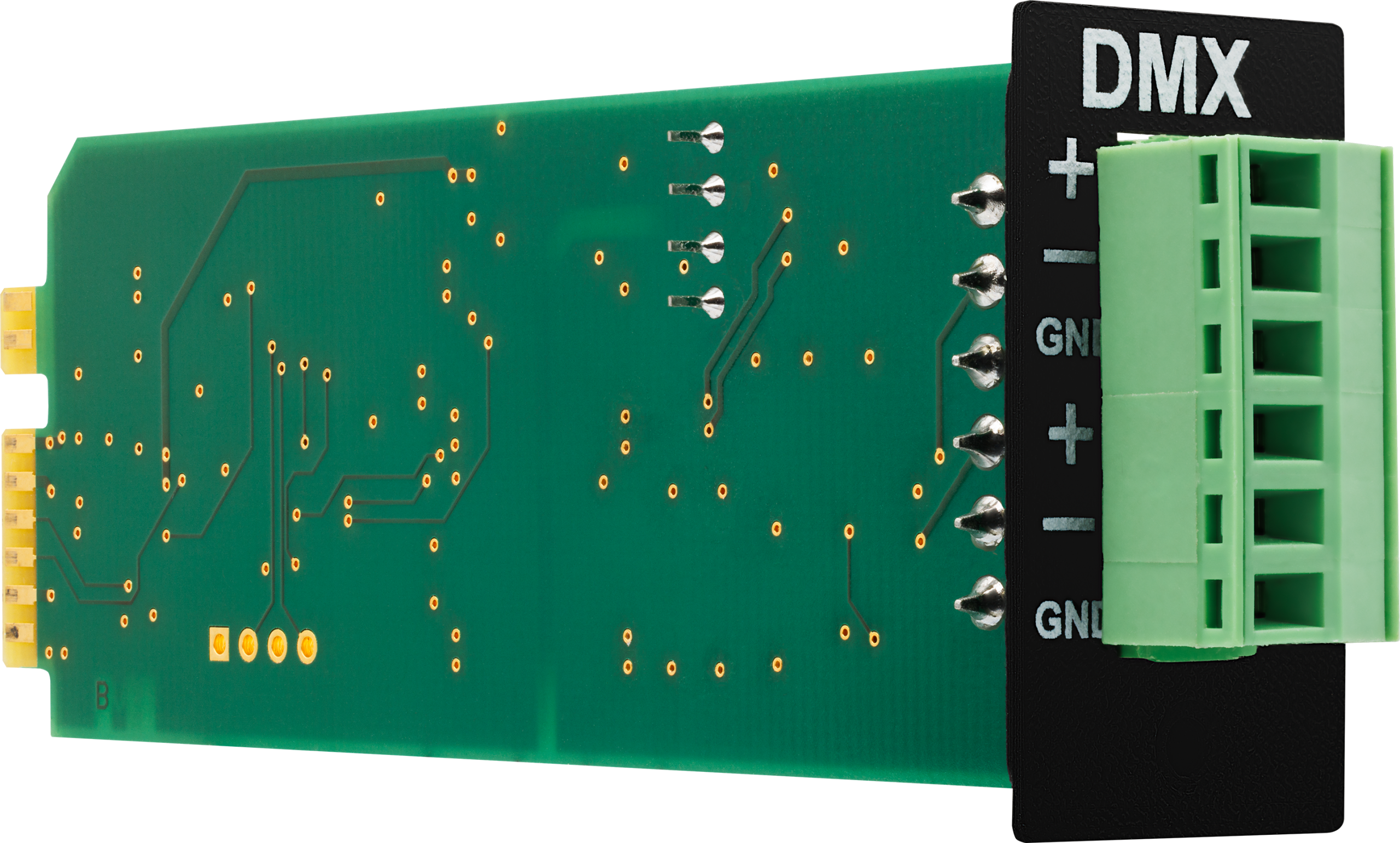

DMX512 Module 2-Port
CL24100604235

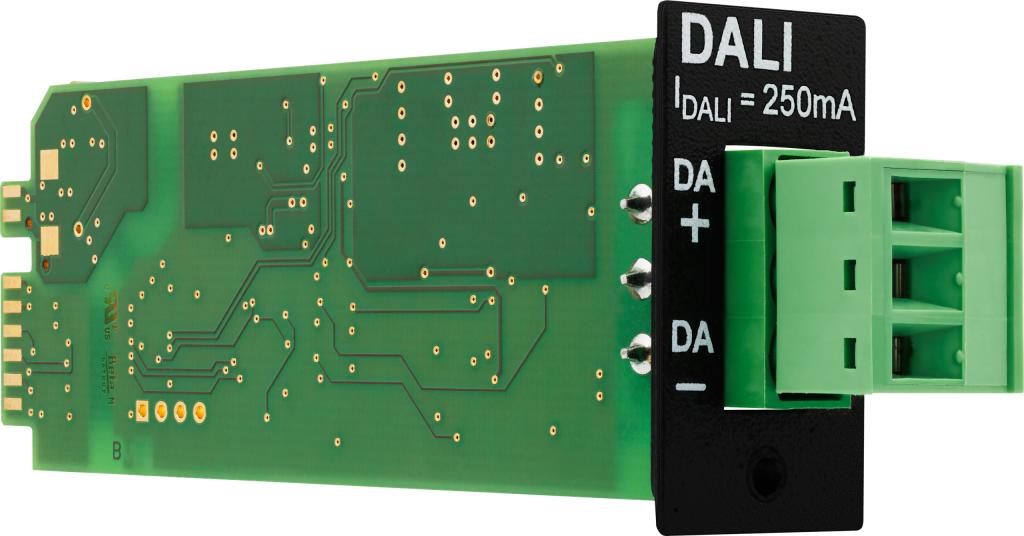

DALI-2 Module 1-Port
CL2100604035
Control dynamic color illumination with DMX, huge media facades or even complex general lighting projects with DALI-2.

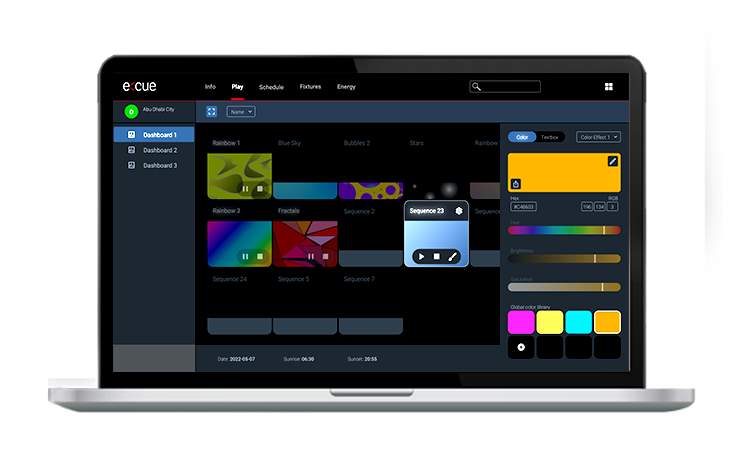

Full-scale platform that offers you a deep insight into and control over all your functional and dynamic lighting assets.
